Product Description

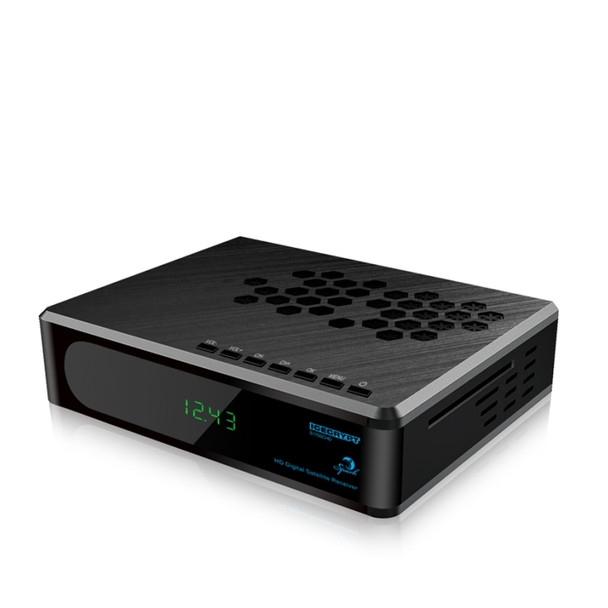

ICECRYPT S1700 CHD COMBO SATELLITE & TERRESTRIAL MINI HIGH DEFINITION PVR READY DIGITAL RECEIVER

The Icecrypt S1700CHD is a superb mini full HD 1080P high definition digital satellite receiver with embedded multicrypt card reader, PVR ready and dual boot E2 system. Furthermore the S1700CHD operates from a 12volt power source making it a great contender for mobile/caravan use as well as in the home.

Key features:

  • MPEG-Fully DVB-S / DVB-S2 HD compliant
  • Endless channels (TV and Radio) programmable
  • Multilingual menu text support
  • Embedded card reader
  • Channel list editing
  • Favourite channel list editing
  • True-color On-Screen Display (OSD)

Full feature list:

  • MPEG-Fully DVB-S / DVB-S2 HD compliant
  • Endless channels (TV and Radio) programmable
  • Multilingual menu text support
  • Channel list editing
  • Favourite channel list editing
  • True-color On-Screen Display (OSD)
  • Full Picture In Graphic (PIG) function
  • Electronic Program Guide (EPG) for on screen channel information
  • Subtitle supported
  • Teletext supported by software emulation
  • Parental lock facility by channel and program event
  • Program and Channel information transfer from receiver to receiver
  • DiSEqC 1.0, 1.1, 1.2 and USALS
  • HDMI HD Video/Audio Output
  • USB 2.0 Host
  • LED Display for service information
  • RTC (Real-Time-Clock)
  • Time Shift
  • Video Recording
  • Recording one channel and Time Shifting another channel (optional)
  • Conax Embedded Card Reader
  • Full HD 1080p output via HDMI
  • AVI, MKV, MPG, TS, WMA, WMV, M2TS, FLV, DAT, ASF, MP3 playback
  • YouTube, SHOUTcast Radio, and Picasa Compatible
  • Weather forecast & Rss Reader Functions
  • Software Upgrade support via USB, RS232 or Internet
  • Endless possibilitier with Plug-In support
  • Message, FAQ and User Manual support
  • Download files from FTP server
  • Base on LINUX


Technical Specification:

System Resources
Main Processor 450M Hz based CPU
Flash Memory Nor flash:8MB X 1 ; Nand flash:512MB X 1
DDR SDRAM DDR2 128MB x 2

Tuner/Front-end
Tuner Type DVB-S / DVB-S2
Input Connector F-type, Connector, Female
Loop Through F-type, Connector, Female
Signal Level -65 to -25 dBm
LNB Power & Polarization Vertical: +13V/+14V
 Horizontal: +18V/+19V
 Current: Max. 400mA
 Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control Amplitude: 0.6±0.2V
 Version 1.0, 1.1 1.2, USALS, unicable Available
Demodulation QPSK, 8PSK
Input Symbol Rate 2-45 Mbps, Convolution Code Rate
 1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,3/5,4/5,8/9,9/10 and Auto

Power Supply
Input Voltage DC 12V/2A
Power Consumption 20W MAX

MPEG TS A/V Decoding
Transport Stream MPEG-2, H.264
Input Rate Max.120Mbit/s
Aspect Radio 4:3, 16:9, Letter Box
Video Decoding MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution 720*480P/I, 720*576P/I, 1280*720p,1920*1080i,1920*1080p
Audio Decoding MEPG-1 layer I/II, MPEG-2 layer II, Dolby digital
Audio Mode Left / Right / Stereo/ Mono
Sampling Rate 32, 44.1 and 48KHz/td>

A/V DATA INPUT/OUTPUT
A/V(Φ3.5MM Earphone Jack) Video CVBS outpu
 Audio L/R output
RS-232C Transfer rate 115.2Kbps
Φ3.5MM Earphone Jack
IR(Φ3.5MM Earphone Jack) 38Khz
RJ-45 10M/100M
USB Two USB 2.0 slot Compatible for Host
HDMI VER1.3
 Type A

PHYSICAL SPECIFICATION
Size[W*H*D] 140mm*33mm*120mm
Net Weight 0.35KG
Operation Temperature 0°C~+45°C
Storage Temperature -10°C~+70°C
Storage Humidity 5%~95% RH (Non Condensing)
