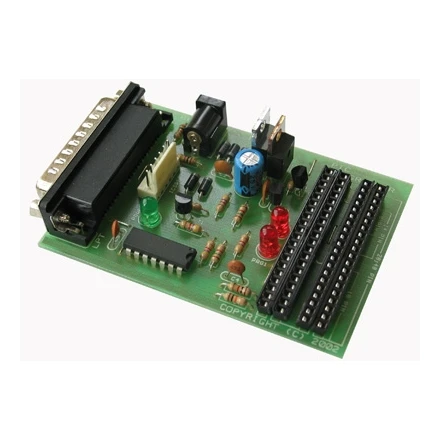

PICPROG3 MULTI-PIC PARALLEL PORT PIC PROGRAMMER

PicProg3 multi-pic parallel port PIC programmer for 8 / 18 / 28 and 40 pn PIC devices.

The PicProg3 is PIC programmer based on D.Tait's parallel port design. To operate it requires an external power supply 12-15VAC or 16-18VDC. It supports all 8 / 18 / 28 and 40 pin PIC microcontrollers which allow serial programming. PicProg3 has a connector and cable for ICSP programming and can be used to program all PIC-PxxB prototype boards.
The supported devices depend on the current version of ICPROG software.
There is also LINUX support for this programmer.

Note: The programmer may not work with low power serial interfaces - i.e. laptop or notebook serial ports. USB to serial cables have also not been proven to work.

Features:

• Fully Built & Tested
• Parallel Device for Fast Programming
• Complete with Windows Programming Software (Freeware) available via download
• Dimensions 75x58 mm (3x2.3") + 30 cm (12") ICSP cable
• PSU Included
• Programmes the following PIC's and more...
  12F629, 12C508, 12C508A, 12C509, 12C509A, 12CE518, 12CE519
  12C671, 12C672, 12CE673, 12CE674
  16C61, 16C62A, 16C62B, 16C63, 16C63A, 16C64A, 16C65A, 16C65B, 16C66, 16C67
  16C71, 16C72, 16C72A, 16C73A, 16C73B, 16C74A, 16C76, 16C77
  16C84, 16F83, 16F84, 16F84A
  16C505
  16C620, 16C621, 16C622, 16C622A
  16F627, 16F628
  16C715
  16F870, 16F871, 16F872, 16F873, 16F874, 16F876, 16F877
  16C923, 16C924
  PIC14000

Software:
ICPROG from Bonny Gijzen freeware for programming many PICs, sometimes it doesn't work on some computers read here why www.ic-prog.com
PICPgm freeware PIC programming software by Christian Stadler supports many PICs here
PICALLW - SHAREWARE software by Bojan Dobaj here
FREE software by Nigel Goodwin here

FAQ:
My computer has no LPT port. Can I use a LPT to RS232 converter with PIC-PG3?
No, the USB to LPT converters add delay due to the USB nature and this will mess up the programming timings.
