Selfsat Snipe 3 R Single with Remote Fully Automatic Flat Sat Antenna

Price:
£940.00
SKU:
SNIPE3RSGLMT
Brand:
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

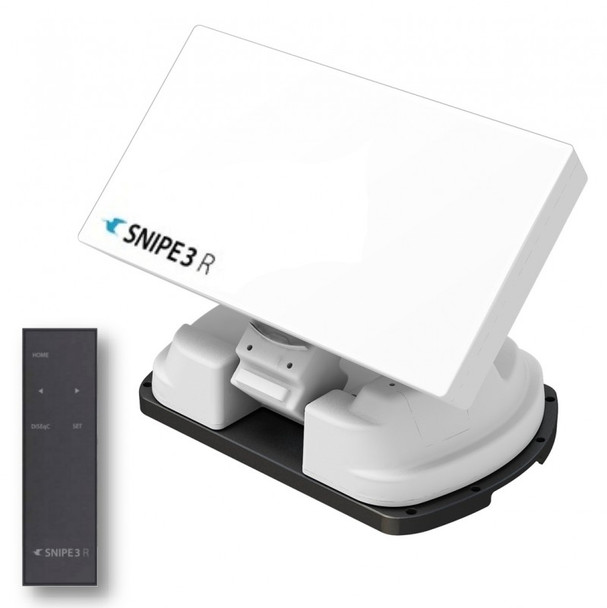

SELFSAT SNIPE 3 R WITH REMOTE CONTROL SINGLE OUTPUT FULLY AUTOMATIC FLAT SATELLITE ANTENNA

THE NEW SNIPE 3 R 'WHITE LINE' WITH BLUETOOTH REMOTE CONTROL!

EVEN MORE DURABLE WITH UPDATED GEARING!

NEW OPTIMISED CASE DESIGN WITH EVEN BETTER RECEPTION!

MOUNTING BRACKET INCLUDED!

The Selfsat Snipe 3 R Single Output fully automatic satellite antenna offers an inconspicuous installation due to its new completely white stylish design with the added beneift of a Bluetooth Remote Control, saving the need to visit the control box to steer the antenna.

The compact form factor of the SNIPE 3 R antenna takes up very little space - ideal for mounting on the roof of a motorhome. Even the annoying alignment at a new location is eliminated. Thanks to the integrated GPS module and electronically controlled drive, the antenna automatically aligns itself at the touch of a button. You receive your usual desired program even when travelling, as long as the respective satellite is available. The SNIPE 3 R automatically folds as soon as you turn off the receiver or start the vehicle.

Despite its small dimensions, the Selfsat SNIPE 3 R offers very good reception results. The three-layer antenna structure with wave guide horn array function largely prevents the diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated and directed to the LNB. The result: a high signal strength at the LNB. The new Snipe 3 R further sports a new optimised case design for even better reception than previous models.

  • Automatic alignment of the desired satellite at the touch of a button
  • Tricky manual antenna alignment completely eliminated
  • Included BLUETOOTH REMOTE CONTROL for easy operation
  • 10 pre-programmed satellites (Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor, Eutelsat 5W, Hispasat)
  • Compatible with DiSEqC 1.0 and 1.1 protocol. Control Snipe 3 R directly from your satellite receiver
  • Automatic adjustment of elevation, azimuth and skew by antenna drive
  • Reception performance comparable to a conventional 60cm dish
  • Very practical for motorhomes: ultra-flat construction
  • Suitable for mobile use as well as fixed roof mounting
  • Suitable for permanent use
  • Waterproof construction with drainage system
  • World's smallest and most powerful automatic satellite antenna
  • Compatible with 4K Ultra HD programming
  • Single LNB for connection to 1 receiver box / TV


New Control Unit

Selfsat Snipe 3 Controller


Advantages of the new SNIPE 3 R

  • New antenna with a new design
    - The new design ensures even better reception
  • Improved durability
    - Waterproof and with drainage system
    - Light and rustproof due to reinforced plastic material
    - Built-in high voltage protection circuit to prevent short circuits at the LNB
  • Advanced technology
    - Support for DiSEqC 1.0 / 1.1
    - Car satellite switch with TV channel control
    - Move to HOME position by switching off the receiver / TV
  • New additional functions
    - Up to 12 preset satellites
    - Optimum inclination adjustment and fast search with GPS
    - Automatic retraction to the HOME position when the vehicle starts
  • Solid mechanics
    - Precise alignment with die-cast aluminum gearbox housing
    - A strong lock protects the antenna from shock during the ride
    - The longevity of the gearing has been greatly improved through the use of die-cast aluminum
  • New controller
    - Smart TP management with storage of 12 transponders (TPs)
    - Automatic removal of obsolete TP and automatic update of new TP
    - Main control buttons directly on the controller provide easy operation and maintenance of the device
    - Easy upgrade procedure via USB
  • New construction
    - No mechanical damage when lifting the antenna. Improved home position including locking system ensures a firm and secure grip while driving
  • New gearing
    New powerful gearing, reinforced with a 18:1 gear ratio, provides high torque and less noise when aligned
  • Bluetooth Remote Control
    Easily align your antenna to different satellite positions without having to run to the controller


Technical specifications:

  • LNB input frequency: 10.7 ~ 12.75 GHz
  • Polarization: Vertical & Horizontal
  • Gain: 33.7 dBi at 12.7 GHz
  • Antenna Dimensions (W x H x D): 515 x 355 x 192 mm
  • Remote Control Dimensions (W x H x D): 34 x 116 x 8 mm
  • Weight: 10.1 kg (without case, mounting plate and accessories)
  • Min. EIRP: 50 dBw
  • Elevation: automatic, 15-90 °
  • Azimuth: automatic, 360 °
  • Skew: automatic, -45 ° to + 45 °
  • DiSEqC: 1.0 / 1.1
  • Satellite search time: max. 180s
  • LNB output: 1
  • LNB output frequency: 950 ~ 2,150 MHz
  • LNB LO frequency: 9.75 / 10.6 GHz
  • Operating temperature: -30 to +60 ° C
  • Supply voltage: 12V DC
  • Power consumption: 30W (during satellite search)


Scope of Delivery:

  • Fully automatic satellite antenna SNIPE 3 R with Single LNB
  • Bluetooth Remote Control Unit
  • Mounting plate for mounting eg on the roof of a motorhome
  • Cigarette lighter cable
  • Antenna cable (gray) 12m
  • Controller SNIPE 3 R
  • controller support
  • Controller cable (black) 7m
  • Base pads
  • Carrying case
  • Cable holder
  • Cable gland
  • Allen key
  • Mounting screws
  • Operation manual
