Technisat SCR LNB Hybrid with Two Legacy Outputs

Price:
£62.95
SKU:
TCHNSTSCRLNB
Brand:
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

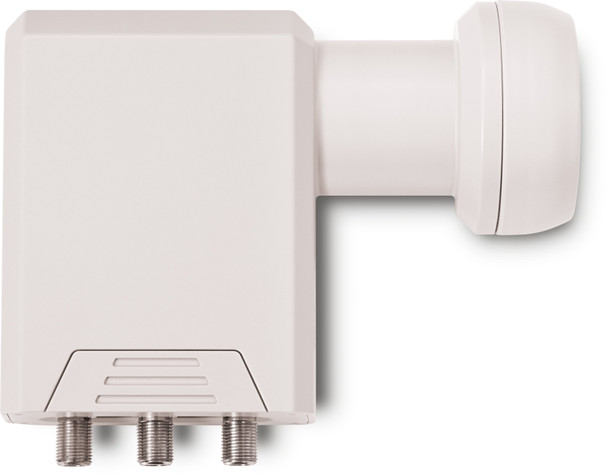

TECHNISAT SCR HYBRID LNB WITH TWIN LEGACY OUTPUT

The TechniSat SCR LNB (aka Unicable) can provide up to 4 participants via one coaxial cable with the complete programs of a satellite. This is also the ideal solution for signal feed-in of multi-tuner receiver device (DVR) to watch a program while recording one or more others.

The two additional LNB legacy (regular) outputs offer additional flexibility for the connection of non-SCR-compatible receivers. So can be operated without the use of a multi-switch with up to six different digital TV sets or receiver.

Key Features:

  • 4 Receiver with SCR support connectable
  • 2 Receiver via legacy output connectable
  • SCR protocol according to EN 50494
  • F-connectors
  • Feed ø40 mm
  • Weatherproof housing
  • 3 Year Warranty


Technical Specification

Frequency range 10.7 ... 12.75 GHz

LNB
Vertical power supply 11,5 ... 14 V
Horizontal power supply 16 ... 19 V
LNB modulation 22 kHz
DiSEqC 1.0

LOF
Lower frequency range 9.75 GHz
Upper frequency range 10.6 GHz

Noise Factor
Lower frequency range 1 dB
Upper frequency range 1 dB

Output frequency range
Lower frequency range 950 ... 1950 MHz
Upper frequency range 1100 ... 2150 MHz
Frequency range 950 ... 2150 MHz

Power supply
Power consumption max. 280 mA @13,5 V

Single-cable output
Output frequency 950 ... 2150 MHz
Number of output channels 4
Frequency of output channels 1210, 1420, 1680, 2040 MHz

Technical data
Outputs 3 (1x SCR (gilded), 2x Legacy)
Feed Reception ø 40 mm

Characteristics
Operating temperature -30 ... 60 °C
Weight 300 g
Colour Off white
