DISCONTINUED - SEE NEW GLOBAL INVACOM OTx KIT HERE

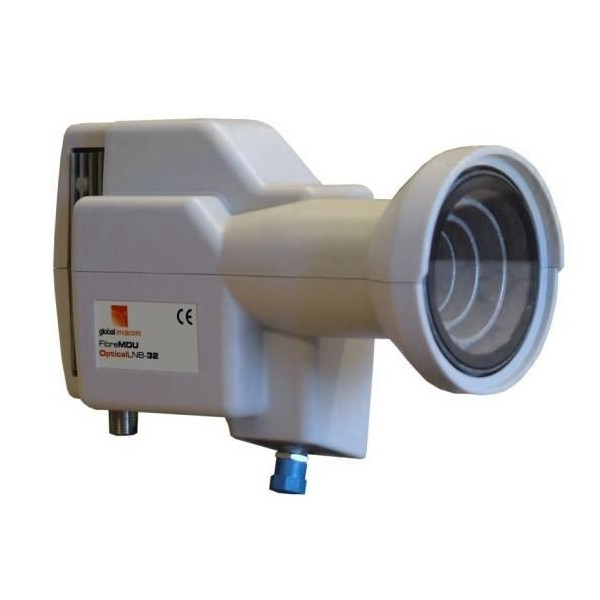

GLOBAL INVACOM FIBRE MDU OPTICAL LNB & PSU MARK 1

POWER REQUIRED VIA F TYPE CONNECTION - SUPPLIED WITH PSU

This innovative new design uses patented technology to frequency stack 4 Universal horizontal and vertical IF bands, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser capable of supplying 32 Virtual Converters over a 10 kilometre radius.

Technical Specification:

• Input Frequency 10.7 - 12.75 GHz
• Output Frequency 950 -5.45GHz
• Modulated Laser Output 1310nm
• Noise Figure Typical at 25°C 0.5dB
• Max & Min Gain 72 - 62dB
• Phase Noise 1 KHz -55dBc/Hz 10KHz -80dBc/Hz
• 100KHz -100dBc/Hz 1MHz -110dBc/Hz
• Connectors F type and FC/PC
• Interface 40mm clamp
• PSU Included
