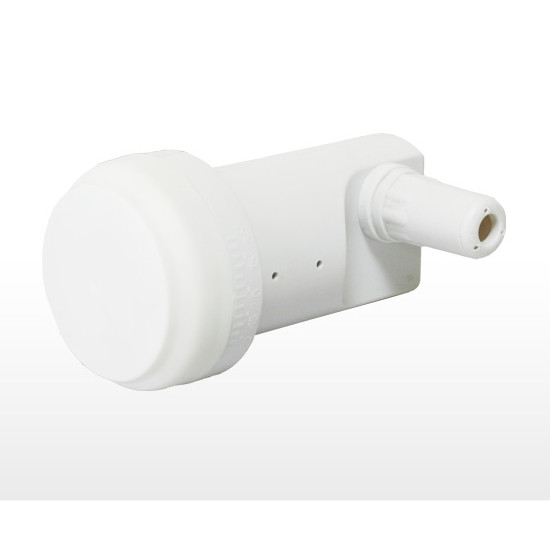

AB-COM 0.1dB Single Output Universal LNB
- SKU:
- ABCOMSNGL01
- Availability:
- In Stock
- Weight Class:
- 1.00 KGS
- Shipping:
- Calculated at Checkout
Description
AB-COM 0.1dB SINGLE OUTPUT UNIVERSAL LNB
HIGH PERFORMANCE HDTV DVB-S2 COMPLIANT LNB
The AB-COM 0.1dB Single Output LNB provides outstanding low noise 0.1dB performance designed to meet strict high-quality specifications to give you optimum signal reception.
Comes complete with rubber weather boot.
Technical Specification:
Input Frequency (GHz) | Low Band:10.7~11.7 |
High Band:11.7~12.75 | |
Output Frequency (MHz) | Low Band:950~1950 |
High Band:1100~2150 | |
Local Oscillator Frequency (GHz) | 9.75 / 10.60 |
L.O. Stability | ±1MHz(Max.)@25°C |
±2MHz(Max.)@(-40°C to +60°C) | |
Noise Figure (dB) | 0.1 (Typ.) |
Cross Pol. Isolation (dB) | 20 (Typ.) |
Gain Flatness | ±0.5dB/27MHz |
Reflector Type | Offset |
L.O. Phase Noise | -50dBc/Hz@1KHz |
-75dBc/Hz@10KHz | |
-100dBc/Hz@100KHz | |
1dB Compression point (dBm) | 0 (Min.) |
Image Rejection (dB) | 45 (Min.) |
Output VSWR | 2.5:1(Max.) |
Output impedance (Ω) | 75 |
Output Connector | F Type Female 1x |
Band Select Control (KHz) | High Band:22±4 |
Low Band:0 | |
Polarity Select Control | V:11.5~14V DC |
H:16~19V DC | |
DC Current Consumption (mA) | 190 (Typ.) |
