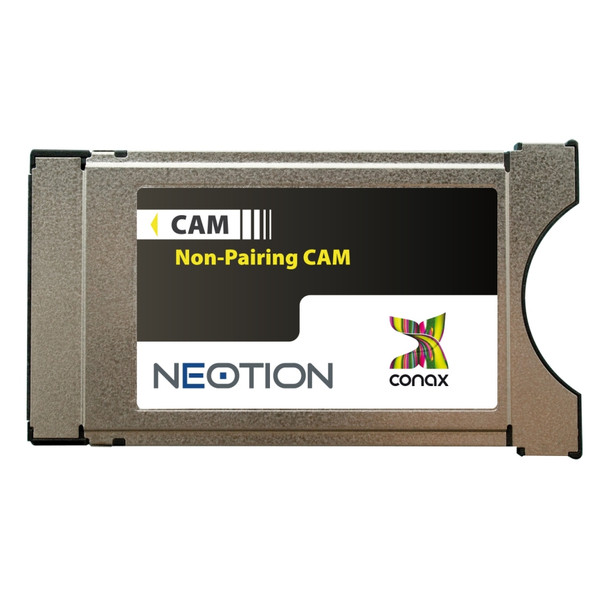

Conax CAM (Neotion)

NEOTION CONAX CAM

Conax CAM manufactured by Neotion for use with Conax encrypted services. The Conax CAM is compatible with Conax encrypted services.

Powered by NEOTION in-house silicon technology, the NEOTION Plug-n-Play CAM enables Digital TVsets (iDTV) and Set-Top Boxes to decode TV programs scrambled with Conditional Access System CONAXTM CAS 7 v5.0 (compatible with lower version).

Inserted in the Common Interface (DVB-CI) slot, NEOTION CAM allows viewers to simply benefit from the booming emergence of MPEG-4 / MPEG-2 and HDTV channels scrambled with CONAXTM on their digital receivers.

Technical Specification:

Stream Type Supported

• MPEG-2, MPEG-4, SD and HD
• All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
• Private Data
• Teletext

Interfacing

• Plug-and-Play & User Friendly
• DVB-CI high level MMI compliant
• Languages: English (up to 18 languages)

Standards

• DVB Common Interface standard and PCMCIA
• ISO/IEC EN50221 compliant
• Smart Card: full ISO 7816-3 (T=0) compliant
• RoHS compliant - directive 2002/95/EC

OTA

• Upgrade from MPEG transport stream over the air
• DVB SSU compliant

Memory

• On chip eDRAM: 16Mbits
• Off chip SDRAM: 128Mbits
• Off chip Serial Flash: 32Mbits

Security

• CONAX (TM) Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
• Hardware crypto accelerators
• On chip OTP

Processing

• ARM7TM @ 126MHz
• 8K I-cache and 8K D-cache
• 8 DVB-CSA descrambler up to 64 PID
• Section Filters - Transport packet filters up to 32 PID

Size, Weight & Power supply

• PCMCIA Type II
• 46g
• 5 volts, from any DVB-CI host
