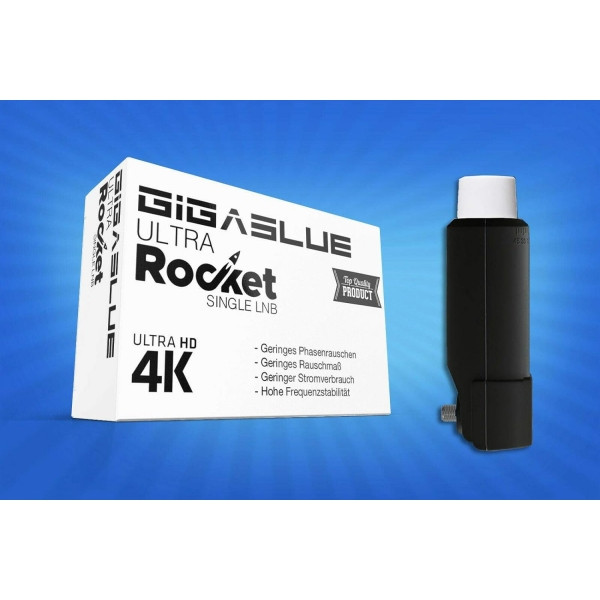

Gigablue Ultra Rocket 0.1dB Single Output Slimline LNB

(No reviews yet) Write a Review
SKU:
GBURCKTSNGL
EAN:
4260190963370
Availability:
In Stock
Weight Class:
1.00 KGS
Shipping:
Calculated at Checkout
  • Gigablue Ultra Rocket 0.1dB Single Output Slimline LNB
  • Gigablue Ultra Rocket 0.1dB Single Output Slimline LNB
£18.95

Description

GIGABLUE ULTRA ROCKET SINGLE OUTPUT SLIMLINE 0.1dB LNB

HIGH PERFORMANCE HD/4K DVB-S2 LNB

The high-quality Gigablue Rocket Single LNB has a space-saving 'bullet' ('Rocket' even) style design coupled with excellent reception quality.

HD/4K and 3D transmissions can be received without restrictions and the shape is perfect for multifeed dishes.

Complete with rubber weather boot.

Technical Specification:

Features:

  • Low energy consumption
  • Gold plated connectors
  • Low noise figure
  • Low phase noise
  • High cross polarization isolation
  • High frequency stability
  • Weather protection housing

Technical data:

  • Input frequency range: 10.70 11.70 GHz / 11.70 12.75 GHz
  • Output frequency range: 950 1950 MHz / 1100 2150 MHz
  • Outputs: 1 (receiver direct connection)
  • LO frequency: 9.75 / 10.60 GHz
  • Noise ratio 0.1 dB (typ.)
  • Conversion gain: 60dB
  • Feedaufnahme: 40mm
  • Operating temperature -30°C ~ 60°C

Scope of delivery:

- Gigablue Ultra Rocket Single LNB
- Rubber cable boot

View AllClose

Warranty Information

1 Year
