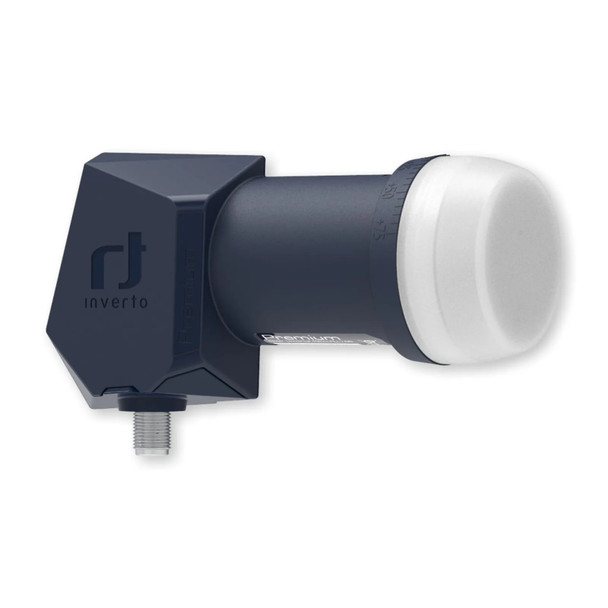

Inverto Premium Single Output Universal LNB SNL413

INVERTO PREMIUM 0.2dB SINGLE OUTPUT UNIVERSAL LNB

HIGH PERFORMANCE HD/4K DVB-S2 LNB

Specifically designed and selcted to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception.

It enables the reception of satellite TV and radio from a single satellite and its distribution to a single tuner Set-top box.

The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions.

Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.

Key Features

• Low Phase Noise, DVB-S2 (HD and UHD) compliant
• Very low Noise Figure
• Low power consumption
• High Cross Polarization Isolation
• High Frequency stability

Technical Specification

• Input frequency range in the lower band: 10.7 GHz ~ 11.7 GHz
• Output frequency range in the lower band: 950 MHz ~ 1950 MHz
• LO frequency in the lower band: 9.75 GHz
• Input frequency range in the upper band: 11.7 GHz ~ 12.75 GHz
• Output frequency range in the upper band: 1100 MHz ~ 2150 MHz
• LO frequency in the upper band: 10.6 GHz
• Noise figure: 0.2 dB typ. (0.7 dB max.)
• LO temperature drift at 60 °C: ±2.0 MHz max.
• LO initial accuracy (at 25 °C): ±500 kHz max.
• LO phase noise at 1 kHz: -70 dBc/Hz
• LO phase noise at 10 kHz: -80 dBc/Hz
• LO phase noise at 100 kHz: -90 dBc/Hz
• LO phase noise at 1 MHz: -100 dBc/Hz
• Conversion gain: 57 dB ~ 67 dB
• Gain ripple (over 26 MHz bandwidth): 1 dB max. (peak-to-peak)
• Gain variation (across the entire band): 4 dB max. (peak-to-peak)
• Mirror suppression: 40 dB min.
• Third-order intermodulation – ICP3: +10 dBm min
• 1 dB compression point (at output): 0 dBm min.
• Cross-polarization isolation: 22 dB min.
• Control signal Ca (V): 10.0 V ~ 14.0 V
• Control signal Cb (H): 16.0 V ~ 20.0 V
• Control signal Cc (band switching): 22 kHz ± 4 kHz, 0.4V – 0.8V pp
• Output VSWR: 2.0 : 1 max.
• Noise level in the band: -65 dBm max.
• Current consumption: 100 mA max. (10 VDC ~ 20 VDC)
• Operating temperature: -30 °C ~ +60 °C
• Output impedance: 75 Ω (F-type)
• Output connector: F-Type (female)
• Weight: 111 g
