Promax Electronics

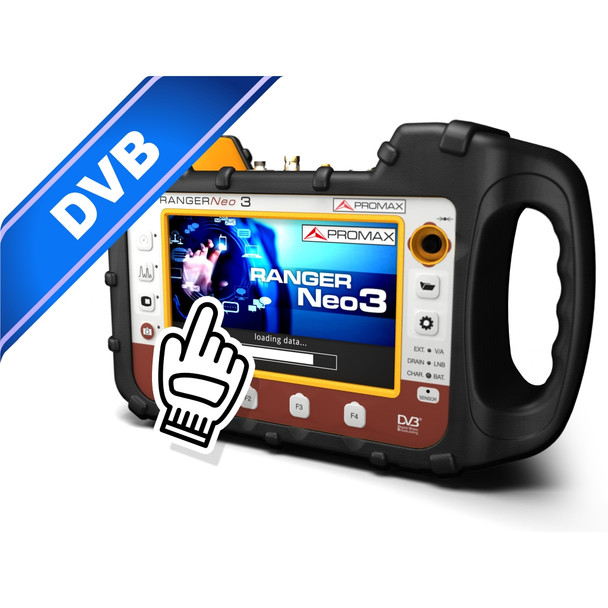

Promax Ranger Neo 3 Touch Screen Field Strength Meter and TV Analyser
- SKU:
- PRMXNEO3FSM
- Availability:
- In Stock
- Weight Class:
- 5.00 KGS
- Shipping:
- Calculated at Checkout
Description
WEBSITE PRICES QUOTED INC VAT - EX VAT PRICE £6885.00
PROMAX RANGER Neo 3 HEVC H.265 TOUCH SCREEN FIELD STRENGTH METER & TV ANALYSER
ALL RANGER NEO 2 FUNCTIONS + HEVC DECODING - T2-MI ANALYSIS - dCSS + MORE
Promax is the leading manufacturer of signal test and broadcast distribution equipment. Their TV & Satellite signal spectrum analysers have been miles ahead of the competition for many years.
The Promax RANGERNeo 3 features a new 7” touch screen with excellent brightness and superior image sharpness that can also be used wearing gloves. The hybrid operation of the RANGER Neo 3 allows the equipment to be fully operated using both the touch panel and the conventional keyboard.prxm
The adoption of H.265 HEVC DVB-T2 HD format for the new digital terrestrial TV offers the extra bandwidth and flexibility required to allocate new content with resolutions up to 1080p. RANGERNeo 3 is the first TV Analyser of its kind to offer HEVC signal demodulation compatible with this new broadcast signals now on air. The hybrid operation allows the equipment to be fully operated using both the touch panel and the conventional keyboard.
Key features RANGER Neo 3
...all the RANGER Neo 2 functions such as Common Interface (CAM) slot and TS-ASI input/output plus:
- HEVC Decoding
- T2-MI packet analysis
It can receive a T2-MI signal in the form of both ASI or IP formats, performing IP transport quality measurements, T2-MI packet analysis and PLP de-encapsulation - dCSS LNBs
It stands for Digital Channel Stacking Switch LNB and they come to take multiuser single cable distribution systems one step further - Extended IP functions
- Ethernet connectivity for remote control
Besides remote control the IP interface can be used to save or retrieve data from a PC, copy channel tables or installation information, dataloggers, copy transport stream files, screen shots, etc. - More internal memory
Up 7 GB for user data
Detailed specification available Download Datasheet
General Ranger Neo features
One of the most noticeable and stunning features on the new RANGERNeo family of products is the ultra fast spectrum analyser. As soon as you use the analyser you will experience this outstanding feature as one of the major changes we have adopted in the new product allowing you to sweep faster and more accurately. The introduction of the latest technology within the product allows you to display multiple screens either overlapped together or in a 7” split screen format.
It includes touch screen with hybrid control system (touch screen + buttons).
- Less weight and volume: 2.4kg
- Triple split display
- Ultra fast spectrum
- IPTV Input
- Common Interface (CAM) slot
- RANGER performance and speed
- wbLNB compatible
- dCSS LNB's
- 2.4 GHz Wifi Analyser
- Ethernet connectivity
- Professional Spectrum Analyser
Optical measurements and 3 GHz band extension can also be included as an option, thus converting the RANGERNeo 3 to an all-purpose field strength meter.
RANGER NEO 3 SPECIFICATION:
| OPERATION MODES | Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | - DVB-T, DVB-T2, DVB-T2 lite |
| - DVB-T2-MI (Gateway to modulator) | |
| - DVB-C, DVB-C2 | |
| - DVB-S, DVB-S2, DVB-S2 multistream | |
| - DSS, ACM/VCM | |
| - DAB, DAB+ | |
| - TS | |
| VIDEO CODECS | MPEG-2, MPEG-4 H.264, HEVC H.265 |
| AUDIO CODECS | MPEG-1, MPEG-2, HE-AAC, Dolby Digital, |
| Dolby Digital Plus | |
| INPUTS AND OUTPUTS | - Universal RF connector 75 Ω |
| - ASI-TS input and output | |
| - IPTV input UDP/RTP RJ45 Ethernet 1 Gbps | |
| - HDMI output | |
| - IP input for remote control | |
| - Analogue Video/Audio input | |
| - Common Interface module slot | |
| - 2xUSB for data tranferring and GPS module | |
| FUNCTIONS | - Merogram and Spectrogram |
| - Constellation diagram | |
| - LTE | |
| - Dynamic echoes analysis | |
| - StealthID (instant identification | |
| of tuning parameters) | |
| - PLS (Physical Layer Scrambling) | |
| - Ultra fast spectrum analyser | |
| (70 ms sweeping time) with MAX/MIN hold | |
| - FM RDS radio measurements and decoding | |
| - Screenshots and Datalogger | |
| for measurement reports | |
| - Wideband LNB | |
| - WiFi 2.4 GHz | |
| - LTE 1.8 GHz | |
| - OTT | |
| - Service Recording | |
| - DVB-S2 multistream | |
| - Signal monitoring | |
| - Field strength | |
| - Task planner | |
| - TS Recording | |
| - TS Analysis | |
| - Web server | |
| - MER by Carrier | |
| - IPTV multicast | |
| - Shoulder Attenuation | |
| - Network Delay | |
| - GPS Coverage Analysis | |
| - Beacon-Flyaways SNG and VSAT | |
| RESOLUTION BANDWIDTHS | 2, 10, 20, 40, 100, 200 kHz |
| 1 MHz | |
| OPTIONS | - Optical power meter |
| + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz | |
| - WiFi 5 GHz + LTE 2.6 GHz | |
| PC CONNECTION | - NetUpdate 4 (free software) |
| via ethernet interface | - Free and automatic firmware updates |
| - Remote control (webserver) | |
| - User customised channel plans | |
| - Measurement reports and screenshots |
