Selfsat
Selfsat Snipe Pro Max Fully Automatic Flat Satellite Antenna
- SKU:
- SNIPEPROMAXS
- EAN:
- 3700433805032
- Availability:
- Out of Stock
- Weight Class:
- 5.00 KGS
- Shipping:
- Calculated at Checkout
Description

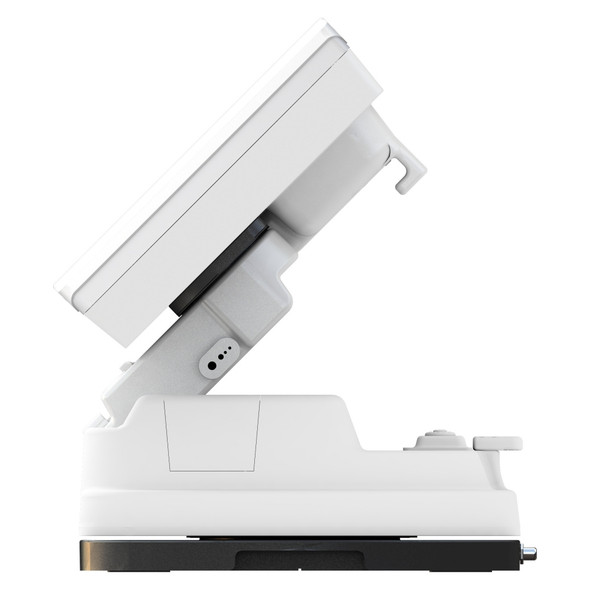

SELFSAT SNIPE PRO MAX FULLY AUTOMATIC FLAT SATELLITE ANTENNA WITH MOUNTING BRACKET
FANCY A BIGGER ONE? THIS IS IT! LARGER DISH FACE THAN REGULAR SNIPE! MORE ROBUST DESIGN!
GREAT FOR MOTORING IN BOTH UK & NORTHERN EUROPE!
MOUNTING BRACKET INCLUDED!
Selfsat Snipe PRO MAX is the ultimate model in the Snipe range. The Snipe Pro Max is a fully automatic satellite antenna system ideal for use whilst away in your Motorhome, Horsebox or Boat.
The Snipe Pro Max is a robust whilst discreet fully auto locking Satellite TV dish system. Specifically designed for outdoor use to give you the best possible performance. It has a larger reception face than other Snipe models equivalent to a 75cm regular parabolic dish (EIRE = 48 dBw). The Snipe Pro Max has a new stronger, reinforced design and also allows the programming of two additional satellites. The Snipe Pro Max has a state-of-the-art element design and operates with three axes of movement. The built in GPS is able to detect your location and auto skew the element to give you the best possible gain for your position. The easy to use remote control allows you to see all the satellite parameters, with ten major satellites already pre-programmed and the facility to program two more. Sit back and enjoy the TV you love at home even faster and in more locations when away on holiday in your motorhome, horsebox or truck.
Key features:
- Fully automatic positioning
- Large receptor face equivalent to a 75cm dish antenna
- 3 axes movement including AUTO SKEW
- Self-home operation when starting vehicles
- Multi Satellite Reception
- 200% higher gain for further range reception
- 10 major satellites pre-programmed
- Ability to program 2 additional user-defined satellites
- Enables to watch favorite local channel out of home location
- Wide elevation range for use throughout Europe
- Most robust Snipe design yet
- All major parts made with aluminium di-casting
- Powerful DC Warm type Motor, Zinc Alloy Gear & Warm Gear with Iron S45C
- Firm Link Structure supports the antenna and POWERFUL body
- Higher performance than type of big dome antenna
- Flat & sleek design with ONLY 4 buttons to operate
Detailed specification available Download Datasheet
User manual available Download Datasheet
Technical Specification:
Dimensions | 518 x 569 x 270mm |
Weight | 19.6kg |
Antenna Gain | 36.1dBi @ 12.7GHz |
Min EIRP / Max dish size equiv. | 48 dBw / 75cm |
Polarization | Linear (Horizontal / Vertical) |
LNB Output | 1 output |
LNB Input Frequency | 10.7 ~ 12.75 GHz |
LNB Output Frequency | 950 ~ 2,150 MHz |
Angle Range | 5° ~ 90° / 390° / -60° ~ +60° |
Satellite Search Speed | 20 - 30 ° / second |
Satellite Searching Time (max) | 120 seconds |
Power Requirement | DC 12 ~ 24V |
Input Voltage | 84W (in searching) |
Operating Temperature | -30°C ~ +60°C |
Elevation | Automatic 5-90 ° |
Azimuth | Automatic 390 ° |
Skew | Automatic -60 to +60 ° |
What's in the box?
- Fully automatic satellite antenna SNIPE PRO MAX
- Cigarette lighter cable
- Antenna cable 7m
- Controller unit
- Instruction manual
- Transport bag
- Various mounting accessories
