TechniSat

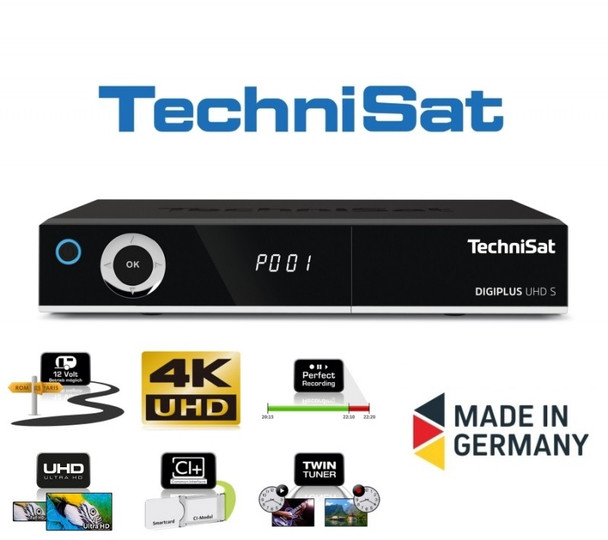

TechniSat DIGIPLUS UHD S 4K Ultra HD Twin Tuner Satellite Receiver

(No reviews yet) Write a Review
SKU:
TCNSTDGPUHDS-NO
EAN:
4019588047594
Availability:
In Stock
Weight Class:
1.00 KGS
Shipping:
Calculated at Checkout
  • TechniSat DIGIPLUS UHD S 4K Ultra HD Twin Tuner Satellite Receiver
  • Technisat DIGIPLUS UHD S (Front)
  • TechniSat DIGIPLUS UHD S 4K Ultra HD Twin Tuner Satellite Receiver
  • Technisat DIGIPLUS UHD S (Rear)
£289.95

Description

HIGHLY RECOMMENDED FLAGSHIP HD & 4K UHD SET TOP  BOX

TECHNISAT DIGIPLUS UHD S 4K ULTRA HD TWIN TUNER RECEIVER

FULL FEATURED 4K UHD TWIN TUNER PVR READY SATELLITE RECEIVER

RECORD TO USB OR NAS & STREAM CHANNELS TO CONNECTED DEVICES

CINEMA READY

With the Technisat DIGIPLUS UHD S you can enjoy 4K content (as well as SH and HD), the DIGIPLUS UHD S is the perfect addition to your UHD TV set.

The satellite receiver has a DVB-S/S2 TwinTuner for simultaneous viewing and recording of two different programs. You can then store the recordings very flexibly on USB data device or over the home network on NAS storage.

The DIGIPLUS UHD S also plays UHD video files from the network or from USB. The receiver can be used in the network as a UPnP client and server and thus becomes a perfect multimedia center.

The DIGILPUS UHD S can stream live content to a multimedia device with the appropriate UPnP-capable media player such as a mobile device, smart TV, tablet, laptop etc.

Thanks to the TechniSat CONNECT app, you can easily control the DIGITPLUS UHD S not only at home, but also access the receiver at any time on the go to set new recordings.

KEY FEATURES:

  • Twin Tuner 4K Ultra HD Set Top Box
  • Second to none TECHNISAT video and audio quality
  • 4K UHD Upscaling
  • DVR Ready - Record to USB or NAS (Network Storage)
  • Record edit function
  • CI+ Slot for Pay-TV
  • Streams Live TV to your mobile device or Smart TV
  • Built-in Multimedia player
  • Set timer recordings while on the go
  • Integrated wireless LAN


UHD/4K Thanks to support for the latest standards (HDMI with 4K 50 / 60p / HDCP 2.2 / HEVC H.265), the receiver processes (if broadcasted) 4K satellite TV and passes the ultra-high-resolution images to a suitable UHD/4K TV set. The ISIO STC also plays UHD files from a network or USB3.0 connected device.


UHD/4K Upscaling With UHD/4K upscaling can enjoy various non-UHD content such high definition TV programmes and movies on Blu-ray or DVD, can be viewed with improved picture quality. With UHD upscaling the source material is processed and played out in in sharp UHD / 4K resolution, which approximates a UHD display for lower resolution content.


Easy Auto-Install Using your Technisat box for the first time requires a number of important settings storing specific to your location. Clear on-screen instructions from the Technisat easy installation wizard will guide you through an easy-to-understand set up procedure. You will be up and running in no time.


Twin Tuner This means that two progeammes can be recorded at the same time, i.e. one programme can be recorded and the other viewed and recorded. You can also watch two programmes in parallel (picture in picture).


DVR Ready USB/NAS Do not miss any more programmes and record your favourite films, TV programmes and music losslessly via USB such as USB hard drives and memory sticks. When integrated in to the home network recordings can also be saved directly to shared network storage (NAS) with this device. NAS stands for Network Adressed Storage and is becoming increasingly common at home which makes data readily available to a whole range of devices.


Common Interface CI+ This (common) interface is used in combination with a CI or CI+ module and corresponding SmartCard to enable access to encrypted programming such as Pay TV or Pay Radio. CI+ 1.3 compatible.


Perfect Recording Offers detection of broadcast time postponement in DVR mode. EPG permitting.


Pay-TV Ready This device enables you to receive encrypted content from a subscription based Pay TV provider.


PIP function The Picture in Picture (PIP) function enables the TV picture for one channel to be minimised and shown at the edge of the screen while another is watched on the main TV screen.


Universal Plug and Play (UPnP) This device can be integrated into a home network. In this way, different multimedia devices can be networked directly via UPnP/DLNA (e.g. PC, television, audio system).


Camping This device can be operated using both normal 110/230V mains and a 12V power supply, e.g. for a vehicle. Hence it is suitable for both home and mobile use.


Editing Function Recorded programmes can be edited later via handy cutting and editing tools (e.g. to remove advertising slots).


TV/Entertainment Control via Amazon Alexa You can operate TV/entertainment functions of this device with the Alexa voice control. For voice control of this device you also need:
- MyTechnisat App
- Amazon Alexa App
- Alexa voice control device


TechniSat CONNECT is the app that enables the uniform control of a large number of functions from one central app. The app can be customised with different application modules individually to your needs. CONNECT is available for iOS and Android mobile devices.


MyTechnisat MultiPlay App With the Android MyTechnisat MultiPlay App you can access all your films, music and photos in the entire home network from your tablet and play the media on all UPnP/DLNA compatible devices.


TechniMatic This free updating service from TechniSat keeps the software on your device up to date. As soon as enhancements or improvements to the operating software are available, the set carries out an automatic software update at the appropriate time (adjustable in the menu on the TV). This ensures a high level of future-security and a wider and improved range of functions.

English User Guide here

TECHNICAL SPECIFICATION



Display
Picture in picture (PIP) Yes (2x SD, 2x HD, 1x UHD and 1x HD,
  1x UHD and 1x SD, 1x SD and 1x HD)
Freeze frame Yes
Zoom Yes
UHD / 4K upscaling Yes
SD Yes
HD Yes
UHD / 4K Yes
2160p Yes
1080p Yes
1080i Yes
720p Yes
576p Yes
576i Yes

Connectivity
HDMI (out) 1 (4K 50/60p / HDCP 2.2)
USB 2
Common Interface Plus (CI+) 1
Coaxial audio output (S/PDIF) 1
IR extender jack (3.5mm) 1
Ethernet 1Gbit/s (RJ-45) 1
F socket SAT (in) 2

LNB Control
Vertical 14 V
Horizontal 18 V
Band switch 22 kHz
Current consumption Max. 400 mA (short-circuit protection)
DiSEqC 1.0 / 1.2 / SCR1 / SCR2
Ambient temperature 5 … 35° C
Humidity 10 … 75%

Operation/Comfort
Smart home client Yes
TV / Ent. Alexa voice control Yes
Teletext subtitles Yes
Media player Yes
Remote control Yes
Sleep timer Yes
Program positions 9999
Program memory favorites 9999
Teletext Yes
Teletext subtitles Yes
Auto standby Yes
Technisat CONNECT app Yes
Hotel mode Yes
Wake-up timer / Alarm Yes
Selection of regional channels Yes
Hotel mode Yes
Parental control Yes
Software update Yes
Quick start Yes

Decoder
Video decoder MPEG-2 MP @ HL / ML, H.264 / MPEG-4 AVC
  H265 / HEVC
Audio decoder MPEG-1 & MPEG-2 Layer I, II, III

Display
Type 4 digit numeric display

Decryption System
CI+ Yes

Hotel Mode
Protected access to hotel mode Yes
Customisable start screen Yes
Lockable volume Yes
Menu locking Yes
Control panel lock Yes
Integrated LED clock Yes
Selectable start source Yes
Selectable start channel Yes

Internet Functions
HbbTV / Red Button Yes
HTML 5 support Yes
ISIO internet Yes
ISIO live Yes
VoD services Yes
Internet speed test Yes
Web browser Yes
Home network Yes

Power Consumption
Standby LED 0.4 W
Standby with active network conn. 17.1 W

Recording Functions
DVR ready Yes
DVR storage medium via USB / NAS
Multi-recording Yes
Timeshift Yes
Recording folder management Yes
Recording edit function Yes
Perfect recording Yes

Network & Communication
HTTP Yes
DHCP Yes
IPv4 Yes
HTTPS Yes
IGMP Yes
IPv4 Yes
RTP Yes
TCP/IP Yes
UDP Yes
UPnP Yes
1000Base-T Yes

Other features
OSD languages German, English, French, Greek, Italian
  Dutch, Polish, Portuguese, Russian, Spanish
  Swedish, Czech, Turkish, Hungarian

Streaming
UPnP renderer Yes
UPnP client Yes
Live TV streaming Yes
UPnP server Yes

Power Supply
Nominal voltage 230 V
Frequency 50 Hz
Mains adapter External, DC 12V/3A

Technisat CONNECT
Control Yes
SFI Yes
Smart Home Yes
MULTI PLAY Yes

Technisat Value-Added Services
AutoInstall Yes
ISI-Mode Yes
ISIPRO Yes
SFI+ Yes
TechniMatic Yes
TechniFamily Yes

Tuner
Tuner type Twin Tuner
Satellite (DVB-S2) 2
Single Cable Routing (SCR) SCR1 = EN50494, SCR2 = EN50607
Satellite radio Yes
Reception on UHD (H.265/HEVC), HDTV (MPEG-4), SD-TV (MPEG-2)
TechniRouter ready Yes
TechniSelect 12 ready Yes
DVB-IP (multicast) 1

Tuner - Satellite DVB-S2
Reception range 950 … 2150 MHz
Viterbi rates 1/2, 2/3, 3/4, 5/6, 7/8, (automatic adjustment)
DVB-S QPSK
Symbol rate DVB-S 2 … 45 Mbaud
DVB-S2 8PSK QPSK
Symbol rate DVB-S2 10 … 31 Mbaud
FEC RS, LDPC, BCH

Supported Formats & Codecs
Video-Codecs MPEG-4, MPEG-2, MPEG-1, H.264 (up to H.264 /
  AVC Level 4.2), H.265
Video-Formats MP4, M4V, MKV, MOV, MPG, MTS, TS, TS4, VOB
  M2TS, AVI, ASF
Picture-Formats JPEG, BMP, GIF, PNG
Audio-Formats MP3, WAV, AAC, FLAC, M4A, MP2, DDAC3, AIFF

Wireless LAN
Integrated WiFi Yes
2.4 GHz Yes
5 GHz Yes
WLAN 802.11n a/b/g (2.4 GHz / 5GHz)

Characteristics
Weight (device) 636 g
Weight (carton) 1.35 Kg
Device (WxHxD) 22.00 x 4.00 x 17.50 cm
Colour black
Warranty 2 years (registration required)
Made in Germany YES!

Scope of delivery
Technisat DIGIPLUS UHD S
Technicontrol remote control
Power supply
4K HDMI cable
Operating instructions
Warranty card
