100% GENUINE VU+ STOCK!!!
TWO YEAR HARDWARE WARRANTY!!!

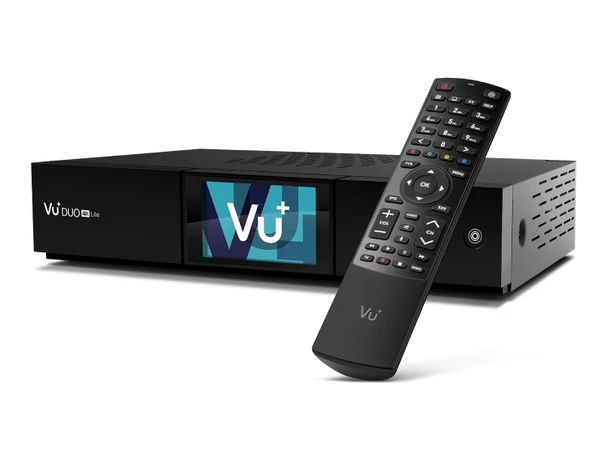

VU+ DUO 4K LITE UHD 1x DVB-S2X FBC TWIN TUNER PVR READY LINUX 2160P

FITTED WITH 1x DVB-S2X FBC TWIN SATELLITE TUNER MODULE

The VU+ Duo 4K Lite is a powerful 4K Ultra HD Linux satellite receiver featuring the flexible Enigma2 operating platform, Full Band Capture (FBC) satellite reception, Gigabit networking, Dual Band WiFi, Bluetooth 5.4 and comprehensive recording and streaming capabilities.

This version is supplied fitted with 1x DVB-S2X FBC Twin Tuner module, providing 8 demodulators for highly flexible simultaneous viewing, recording and streaming.

At the heart of the Duo 4K Lite is a 1.7GHz Dual Core processor, supported by 2GB DDR4 RAM and 8GB eMMC Flash memory. HEVC/H.265 hardware decoding provides full support for Ultra HD 2160p television services.

The receiver also features two Plug & Play tuner slots, allowing additional compatible tuner configurations to be added if required.

A removable 2.5" SATA hard drive bay allows an optional HDD to be installed for PVR recording, live pause and timeshift functions.

What is a DVB-S2X FBC Twin Tuner?

The fitted DVB-S2X Full Band Capture (FBC) Twin Tuner contains 8 demodulators.

With two conventional satellite feeds, for example from a Twin, Quad or Octo universal LNB, the FBC tuner effectively provides two independently fed tuners together with six additional demodulators operating within the available satellite bands.

This allows channels from up to 8 different transponders to be received simultaneously, subject to the satellite feed configuration.

This makes it possible to watch one programme whilst recording or streaming several others at the same time.

When used with a compatible SCR/Unicable or dCSS installation (EN50494 / EN50607) providing sufficient user bands, all 8 demodulators can operate with substantially greater independence.

Key Features

• DVB-S2X FBC Twin satellite tuner fitted as standard

• 8 FBC demodulators

• Ultra HD 4K / 2160p reception

• HEVC / H.265 hardware decoding

• 1.7GHz Dual Core processor

• 2GB DDR4 RAM

• 8GB eMMC Flash memory

• Enigma2 Linux operating platform

• Very fast channel switching

• PVR ready

• Live pause and timeshift support with optional HDD

• Plug & Play removable 2.5" SATA HDD bay

• Two Plug & Play tuner slots

• Gigabit Ethernet

• Integrated Dual Band WiFi – 2.4GHz / 5GHz

• Integrated Bluetooth 5.4

• 3.0" TFT LCD MiniTV display

• HDMI 2.0 output

• HDMI 2.0 input

• Optical S/PDIF digital audio output

• USB 3.0

• USB-C

• SD card reader

• HbbTV

• WebKit browser

• Transcoding support

• Two Common Interface (CI) slots

• Simultaneous use of two CI modules supported

• Smart card reader

• DiSEqC 1.0 / 1.1 / 1.2 and USALS

• SCR / Unicable / dCSS support – EN50494 & EN50607

• Expandable through a wide range of Enigma2 plugins

• External 12V power supply

Tuner

1x DVB-S2X FBC Twin Tuner fitted

The Full Band Capture tuner incorporates 8 demodulators, allowing multiple channels/transponders to be received simultaneously depending upon the satellite installation and LNB/multiswitch configuration.

The Duo 4K Lite incorporates two tuner slots, allowing compatible additional tuner modules to be installed.

Supported tuner types include compatible:

• DVB-S2 / DVB-S2X FBC satellite tuners

• DVB-C FBC cable tuners

• DVB-T2 Dual terrestrial tuners

Technical Highlights

Processor:
1.7GHz Dual Core CPU

Memory:
8GB eMMC Flash
2GB DDR4 RAM

Network:
Gigabit LAN – 10/100/1000 Mbit/s
Integrated Dual Band WiFi – IEEE 802.11 b/g/n/ac, 2.4GHz / 5GHz

Bluetooth:
Bluetooth 5.4 – suitable for compatible Bluetooth remote controls, headphones, soundbars and other supported devices

Display:
3.0" TFT LCD MiniTV display

Conditional Access:
2x Common Interface (CI) slots
1x Smart Card Reader (Xcrypt)

USB / Expansion:
2x USB 3.0 – rear
1x USB 3.0 – front
1x USB-C
1x SD Card Reader

Hard Drive:
Plug & Play removable frame for optional 2.5" SATA HDD
Maximum HDD height: 15mm

Connections

• 2x DVB-S2X FBC satellite tuner inputs

• HDMI 2.0 video/audio output

• HDMI 2.0 video/audio input

• Optical S/PDIF digital audio output

• Gigabit Ethernet

• 3x USB 3.0

• 1x USB-C

• SD Card Reader

• RS232 service interface

• External 12V DC power input

Software & Reception Features

• Enigma2 Linux operating platform

• Ultra HD 2160p support

• HEVC / H.265 decoding

• Electronic Programme Guide (EPG)

• Unlimited TV and radio channel lists

• Bouquet / favourites list support

• Multi-language OSD

• Extensive skin/interface customisation

• Expandable through numerous free plugins

• Automatic and manual channel search

• DiSEqC 1.0 / 1.1 / 1.2

• USALS motor control

• SCR / Unicable EN50494

• dCSS / Unicable II EN50607

• Network streaming

• Recording and timeshift with optional HDD

• Transcoding

• HbbTV

• WebKit browser

Video Decoding

Video compression:

• HEVC / H.265

• MPEG-2

• H.264

• MPEG-1 compatible

Video standards:

• PAL G / 25Hz

• NTSC

Aspect ratios:

• 4:3

• 16:9

• Letterbox support for 4:3 displays

Digital Audio

Optical S/PDIF digital audio output (AC3)

Audio compression:

• MPEG-1

• MPEG-2 Layer I & II

• MP3

Audio modes:

• Dual (Main/Sub)

• Stereo

Supported sampling frequencies include:

32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz and 24kHz

Power Consumption

Operating with LNB: <13W
Operating without LNB: <10W
Deep Standby: <0.3W

External Power Supply

Input: 110–240V AC, 50–60Hz, 1.5A
Output: 12V DC / 5.0A

Dimensions & Weight

Dimensions (W x D x H):
270 x 202 x 60mm

Weight:
Approx. 1.4kg

Operating temperature:
+15°C to +35°C

Humidity:
<80%

Scope of Delivery

• 1x VU+ Duo 4K Lite UHD Receiver

• 1x DVB-S2X FBC Twin Tuner installed

• 1x VU+ Remote Control

• 1x Quick Manual (English / German)

• 1x HDMI Cable

• 2x AA Batteries

• 1x External Power Supply (110–240V / 12V)

• UK mains connection supplied

Please Note: This receiver is supplied PVR ready without a hard drive unless otherwise stated. A compatible 2.5" SATA hard drive can be installed for recording and time-shift functionality.

Please Note: The VU+ Duo 4K Lite is an advanced Linux/Enigma2 receiver intended for competent enthusiasts familiar with satellite receiver configuration, networking and Linux-based set-top boxes. Knowledge of networking, FTP and Telnet/SSH may be required for advanced configuration and operation.
