Cahors
Cahors 1.2m Fibreglass SMC Satellite Dish with AZ/EL Mount
- SKU:
- CHRS12MAZEL
- Availability:
- Special Order 14 Day Lead Time
- Weight Class:
- 80.00 KGS
Description
OUT OF STOCK - PLEASE SEE ALTERNATIVE HERE

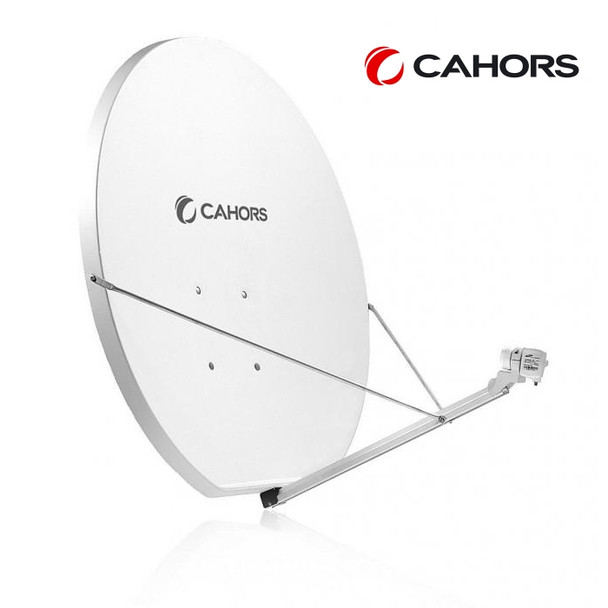

CAHORS 1.2M SATELLITE DISH WITH AZ/EL MOUNTING BRACKET
Cahors 120 cm antenna has optimal dimension stability, durability, high gain and efficiency. It is made from a ultra-durable SMC (sheet moulding composite) making it ready to perform in harsh weather conditions and insensitive to UV radiation and air pollution.
Dimensions:
- Height: 127 cm
- Width : 123 cm
- Gain at 11,7 GHz: 41,3 dB
- Steel Az/El back mount included
Features:
- Increased Signal Gain
- Higher Wind Loading
- Highly Resistant To Corrosion
- Technical
- Antenna Width - 120cm
- Antenna Height - 134cm
- Dish - SMC
- Arm (3) - Steel
- Linear Feed - Zamak
- Back Mount - Steel
- Polar Setup - 0° to 180°
- Gain (dB) at 11,33 GHz - 41.6
- Gain (dB) at 12,63 GHz - 42.4
- Figure of merit (dBK, LNB 1,0 dB) at 11,33 - 20.2
- Figure of merit (dBK, LNB 1,0 dB) at 12,63 - 21.1
- F/D Ratio - 0.57
- Beam width - 1,4° at 11,325 Ghz
- Efficiency - > 72 %
- Stationary ratio - < 1,2/1
- Cross polar isolation - 30 dB on axis
- Weight - 14 Kg
- Frequency range - 10,95 - 12,75 GHz
