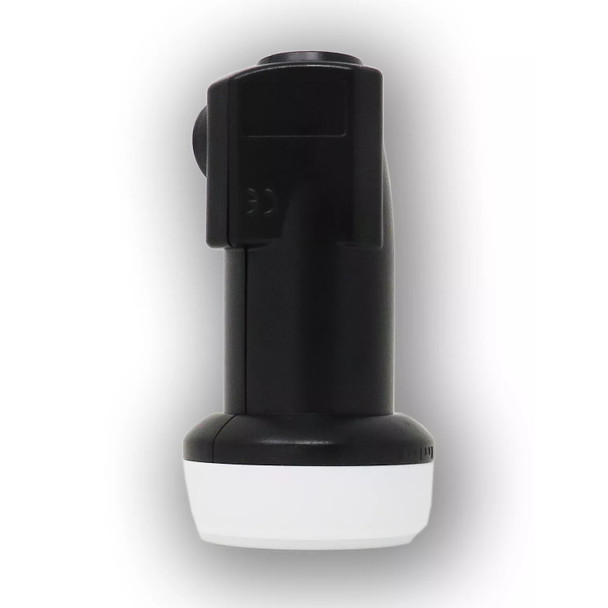

VuPlus DARKGOLD 0.1dB Single Output Universal LNB

VU PLUS DARKGOLD 01.dB SINGLE OUTPUT UNIVERSAL LNB

HIGH PERFORMANCE DIGITAL SD / HD / 4K DVB-S2 LNB

The VuPlus DARKGOLD Single Output 0.1dB LNB is specifically designed and selected to address the demand of the global DTH market for a competitive and 4G/LTE protected solution. The LNB is engineered to meet stringent high-quality standards and delivers exceptional low-noise performance which provides optimised reception capabilities using the latest chipset technology and waveguide design for satellite signal reception.

It enables the reception of satellite TV and radio from a single satellite and its distribution to a single tuner Set-top box.

The LNB supports SD, HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions.

Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.

Key Features:

• Low Phase Noise, DVB-S2 (HD and UHD) compliant
• SD / Full HD 1080p / 4K UHD / 3D Compatible
• Design: Compact bullet style
• Very low Noise Figure
• Low power consumption
• High Cross Polarization Isolation
• High Frequency stability
• Collar: 40mm

Technical specification

• Input frequency range 10.7 GHz ~ 12.75 GHz
• Output frequency range  950 MHz ~ 2150 MHz
• Low band LO frequency 9.75 GHz
• High band LO frequency 10.6 GHz
• Noise figure 0.1 dB typ.
• LO frequency accuracy @ 25° C ±500 kHz max.
• LO temperature drift ±1.0 MHz max.
• LO phase noise @ 10 kHz -80 dBc/Hz max.
• Conversion gain 55 dB min.
• Gain ripple (over 26 MHz bandwidth) ±0.75 dB
• Gain variation (over full band) ±4 dB
• Image rejection 40 dB min.
• 3rd order intermodulation - ICP3 10 dBm min.
• 1dB compression point (@ output) 0 dBm min.
• Cross polarization isolation 22 dB min.
• Control signal Ca (V) 11.0 V ~ 14.0 V
• Control signal Cb (H) 16.0 V ~ 20.0 V
• Control signal Cc (band switching) 22 kHz ±4 kHz , 0.4 V ~ 0.8V pp
• Output VSWR 2.5 : 1
• In band spurious level -60 dBm max.
• Current consumption 95 mA max. @ 11 VDC ~ 20 VDC
• Operating temperature -30 °C ~ +60 °C
• Output impedance 75 Ω
• Output connector type F-type (female)
• Dish F/D ratio 0.6
• Colour Black
• Weight 136g

Scope of delivery

- Vu Plus Single Output LNB
- Rubber cable boot
